用途:
用于SMT生产线的源头,将成叠的PCB裸板逐一传送到生产线上。
Aoolication:
At the start end of a SMT line,the unstacker loads bare
PCBs on to the line piece by piece from stacked bare PCBs.

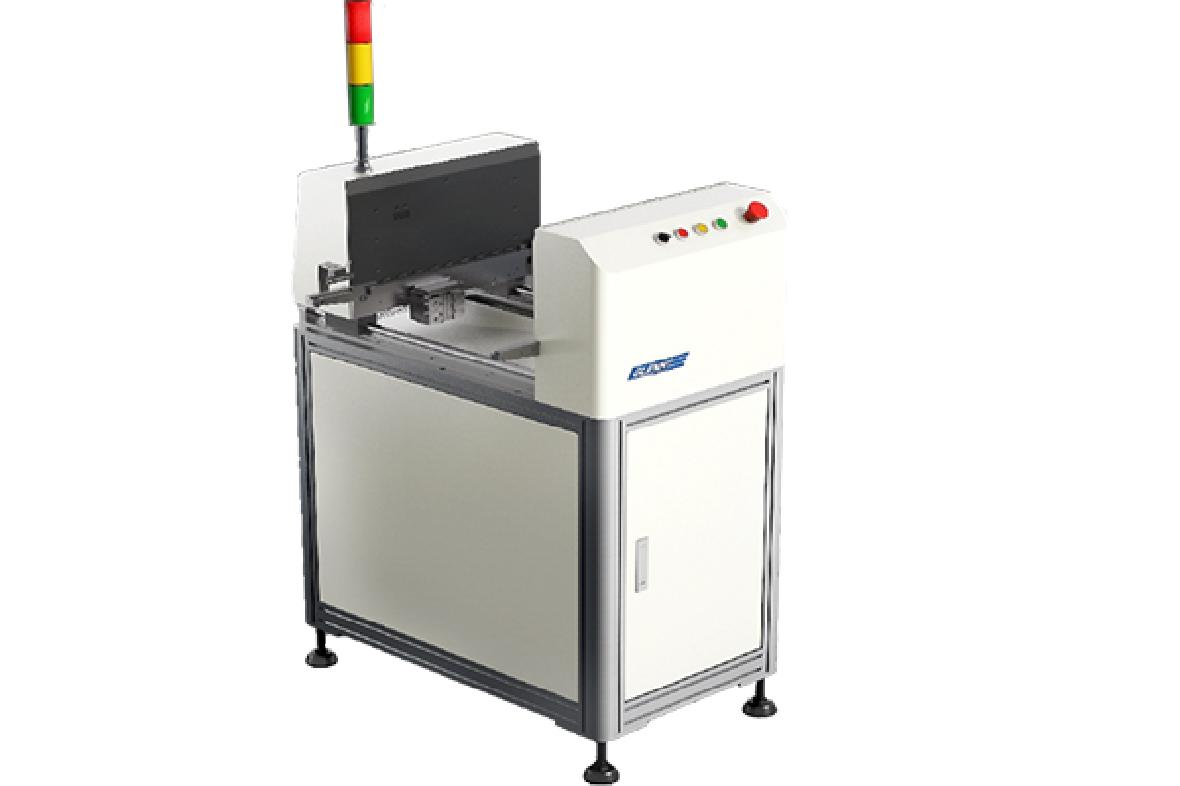

500跌板送板机
特点: Feature:
a)通用较重 较厚及带插件孔的PCB a)a)Suitable for heavier, thicker PCBs and the ones with insert holes
b)可根据不同板宽,板厚自由调节 b)b)Thickness and width adjustable according to different sizes of PCBs
c)周期短,效率高
c)High efficiency and short cycle
d)具有直通功能
d)Pass through function
e)可在不停机的状态下加料
e)Uninterrupted supply of PCBs on the unit while running
f)无需真空吸盘
f)Non-vacuum pad design
Model | 型号 | GBU-500 |
Overall Dimension | 机台尺寸 | (L)650*(W)835*(H)1160mm |
Track width | 传送宽度 | Min50-Max500mm |
PCB Size(L*W) | PCB尺寸(L*W) | Min50*50-Max580*500mm |
Conveyor Height | 传输高度 | 920±30mm |
Board thickness | PCB厚度 | 0.6-3mm |
Weight of PCB | 贮板重量 | 20KG |
` | 贮板高度 | Max200 |
Cycle | 循环周期 | 8S |
Power supply | 电源 | AC220 50/60HZ |
Air supply | 气源 | 0.4-0.6MPa |
Power Consumption | 功率 | 0.2KW |
