商品类型:表面贴装设备周边系列
产品描述:用于SMT生产线的源头,对应后置设备的需板动作要求,将存储在周转箱内的PCB板逐一传送到生产线上。周转箱清空后,空周转自动输出,由满载周转箱自动输入取代。
下载列表:
咨询电话:051265650260
用途:
用于SMT生产线的源头,对应后置设备的需板动作要求,将存储在周转箱内的PCB板逐一传送到生产线上。周转箱清空后,空周转自动输出,由满载周转箱自动输入取代。
Application:
Loader
The PCB is used in the front end of the SMT production line ,which corresponds to the requirements of the board of
the rear equipment,and then sends the one that is stored in the turnover box to the production line one by one.After the turnover box is empty,the empty turnover box is automatically output,and is replaced by a full loader turnover box.

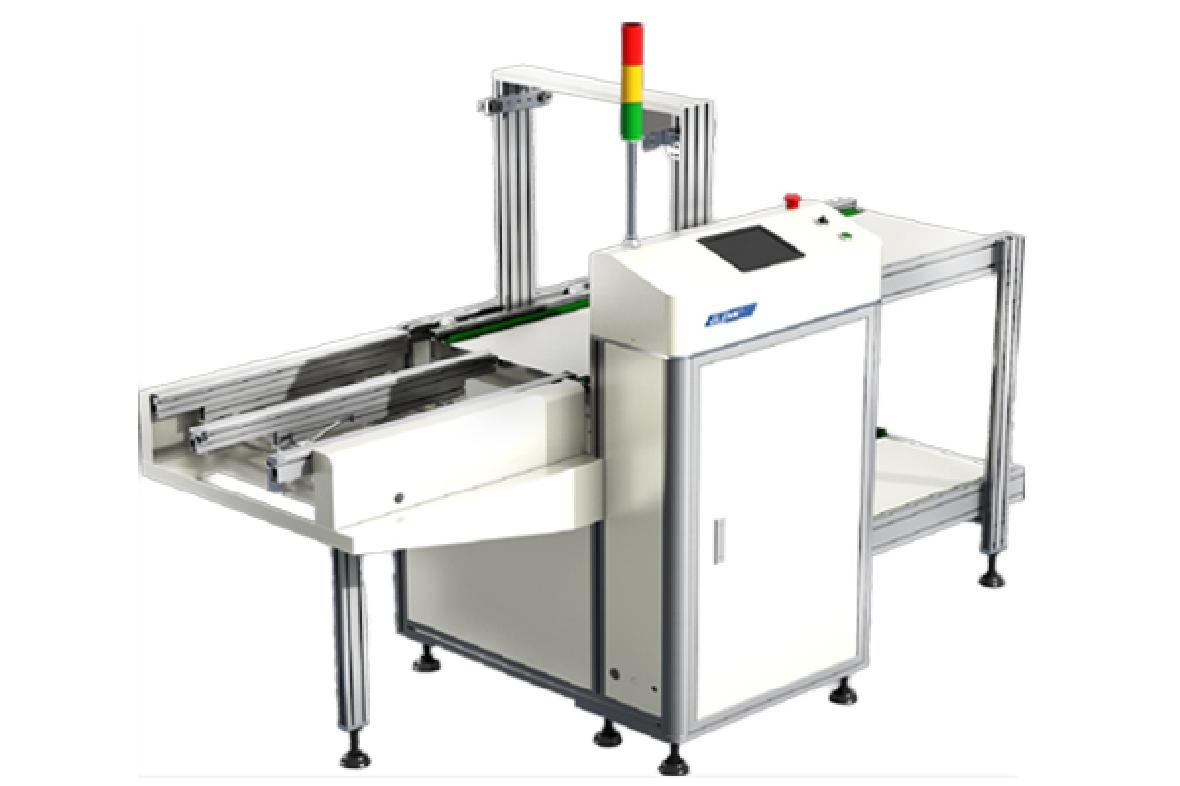

收板机
用于SMT生产线的尾部,对应前置设备的给板动作要求,将生产线上的成品PCB板逐一收存在周转箱内。周转箱存满后自动下层输出,由空周转箱取代。
UNLoader
A PCB automatically storage equipment,at the finish end of a SMT line,for the need of previous machine,the unloader collects PCBs and stores them in the magazine.An empty magazine will automatically replace the full-loaded magazine.
特点: Features:
a)PLC控制系统。 a)PLC Control System
b)可放置3个周转箱。 b)Maximum 3 Magazines
c)5种升降分段选择:10mm 20mm 30mm 40mm 50mm c)5 Pitch Selections:10mm 20mm 30mm 40mm 50mm
d)流程方向:左至右或右至左(流向指定) d)Conveyor Direction:right to left,or left to right(option)
e)多项声光报警。 e)Multi Alarm System
Model | 型号 | GUL-320 | GUL-400 | GUL-460 | GUL-530 |
Overall Dimension | 机台尺寸 | (L)2010*(W)770*(H)1300mm | (L)2210*(W)840*(H)1300mm | (L)2470*(W)890*(H)1300mm | (L)2220*(W)960*(H)1300mm |
Control System | 控制方式 | PLC | PLC | PLC | PLC |
PCB Size(L*W) | PCB尺寸(L*W) | Min50*50-Max330*250mm | Min50*50-Max430*330mm | Min50*50-Max500*390mm | Min50*50-Max500*460mm |
PCB Conveyor Direction | 传送方向 | 左至右(流向指定) | 左至右(流向指定) | 左至右(流向指定) | 左至右(流向指定) |
Conveyor Height | 传送高度 | 920±30mm | 920±30mm | 920±30mm | 920±30mm |
Pitch Selection | 步距选择 | 10mm,20mm,30m,40mm,50mm | 10mm,20mm,30m,40mm,50mm | 10mm,20mm,30m,40mm,50mm | 10mm,20mm,30m,40mm,50mm |
size of magazine | 料架规格 | (L)350*(W)320*(H)570mm | (L)460*(W)400*(H)570mm | (L)535*(W)460*(H)570mm | (L)535*(W)530*(H)570mm |
Num of magazine | 料架数量 | 4 | 3 | 3 | 3 |
Power supply | 电源 | 220V 50HZ | 220V 50HZ | 220V 50HZ | 220V 50HZ |
Air source | 气源 | 0.4-0.6MPa | 0.4-0.6MPa | 0.4-0.6MPa | 0.4-0.6MPa |
Weight | 机台重量 | about210KG | about245KG | about248KG | about260KG |
Power consumption | 功率 | 0.5KW | 0.5KW | 0.5KW | 0.5KW |
Cycle | 循环周期 | 5S | 5S | 5S | 5S |
Magazine change time | 换箱时间 | 22S | 22S | 22S | 22S |
Capacity tonnage | 承载重量 | 50KG | 50KG | 50KG | 50KG |
Functional principle | 功能原理 | 自动收板功能 | 自动收板功能 | 自动收板功能 | 自动收板功能 |
