用途:
用于SMT生产线中提供人或小车横穿生产线的安全通道。

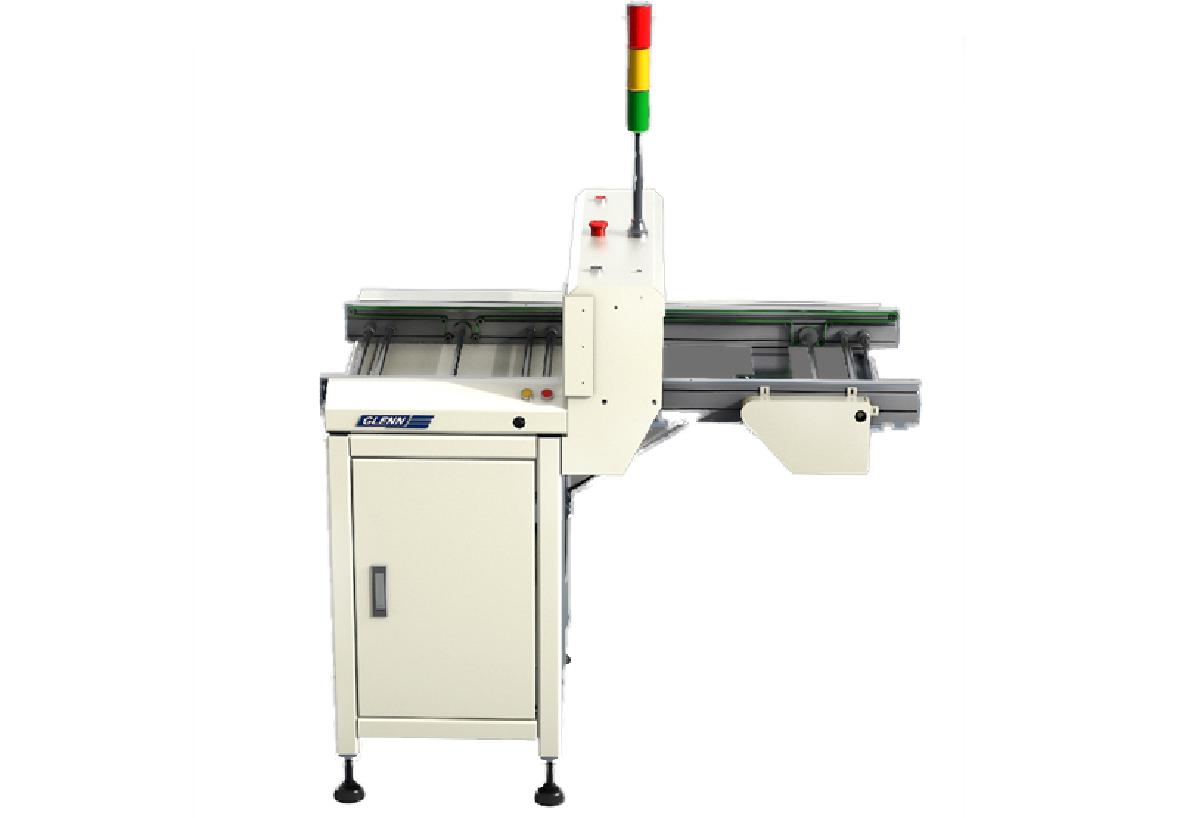

Aoolication:
It is a specifically conveyor,but It's reversible segment can turn up or down,to allows persons or cars
across traffic a long SMT production line.
特点: Feature:
a)PLC程式控制 a)PLC Control System
b)钢架结构,稳固可靠。 b)Made of steel frame,stable and reliable
c)向下/向上翻转,自动/手动翻转均可选择。
c)It can be turned upward and downward,Optional automatic/manual rotation is available.
d)两侧均装有翻转及复位按钮,便于操作。
d)Turning and reset buttons are equipped at either side to convenient operation
e)不翻转时可做为普通轨道使用,不中断过板。
e)It may act as a common conveyor if the turning function is not used,without interrupting the production.
Model | 型号 | GGC-460-1200 |
Overall Dimension | 机台尺寸 | (L)1200*(W)720*(H)1127mm |
PCB Size(L*W) | PCB尺寸(L*W) | Min50*50-Max450*500mm |
PCB Conveyor Direction | 传输方向 | 左至右(流向指定) |
Track Height | 传送高度 | 920±30mm |
Lenght of the fixed segment | 固定段长度 | 500mm |
Lenght of the reversible segment | 翻转段长度 | 700mm |
Soace of the aisle | 过道空间 | 500mm |
Turnover time | 翻转时间 | 6S |
Power supply | 电源 | AC220 50/60HZ |
Power Consumption | 功率 | 0.2KW |
Air supply | 气源 | 0.4-0.6MPa |
Weight | 重量 | 180KG |
Maximum payload | 最大载重 | 3.6KG Max |
